Specs? Here's what makes Lightfoot tick & shine
ELECTRONICS
BATTERY:
German-made AkkuVision Fusione S: 48V, 1.1kWh Li-Ion (25Ah; not removable; UL 2595 & IEC 62133 certified)
CHARGER:
90 minutes* to 80% battery charge using powerful 600W on-board charger (In: 110V, Out: 51.6V/ max. 20A); C-19 socket with 26' (8m) extension cord.
DISPLAY
High-res 2.8-in QVGA LCD waterproof touch-screen display shows charge status, battery level, light status, speed and other critical information.
HORN
120 dBa
HUB MOTORS
Dual brushless DC motors (48V / 750W nominal - 1000W peak) with dual motor controllers (one for each motor). Lightfoot's e-motor assembly includes a planetary gear set (made out of high-strength, super-durable PEEK polymer) for more powerful regenerative braking.
LIGHTS
Front: 2000 lumens Lezyne Mega HB
StVZO, with running/daylight/nighttime modes

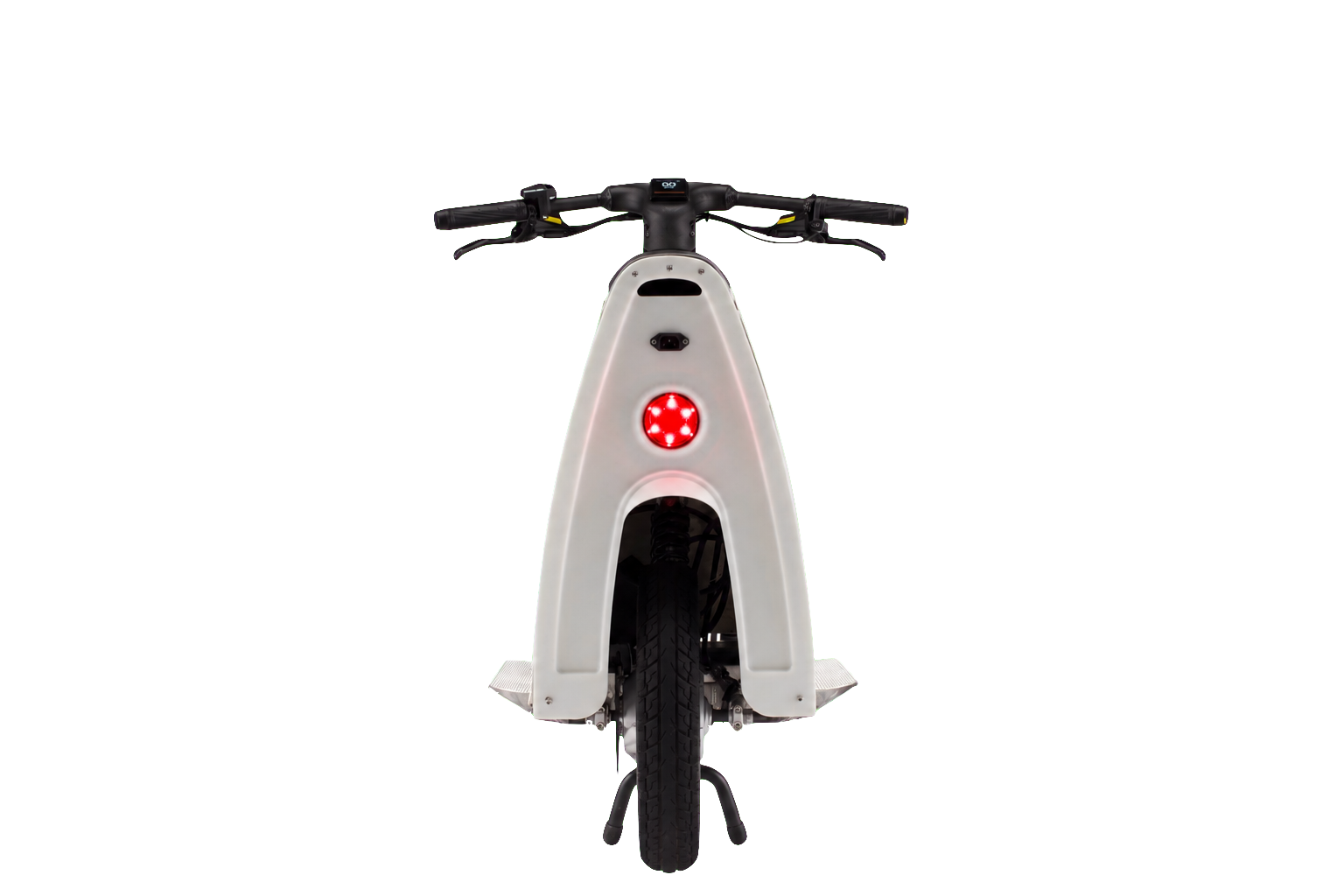

Rear: Accelerometer-activated Lezyne lights, StVZO-certified
POWER
Peak power: 750W per wheel. Note: Motor system utilizes this power to maximize Lightfoot's low-end torque; speed reaches just under 20 MPH
RANGE
37 miles* (60km) of range with battery at full charge.
RANGE EXTENSION
Up to 18 miles* (28km) per day of additional range using solar charging; panels deliver approx. 3 miles of extra range per hour of quality sunlight.

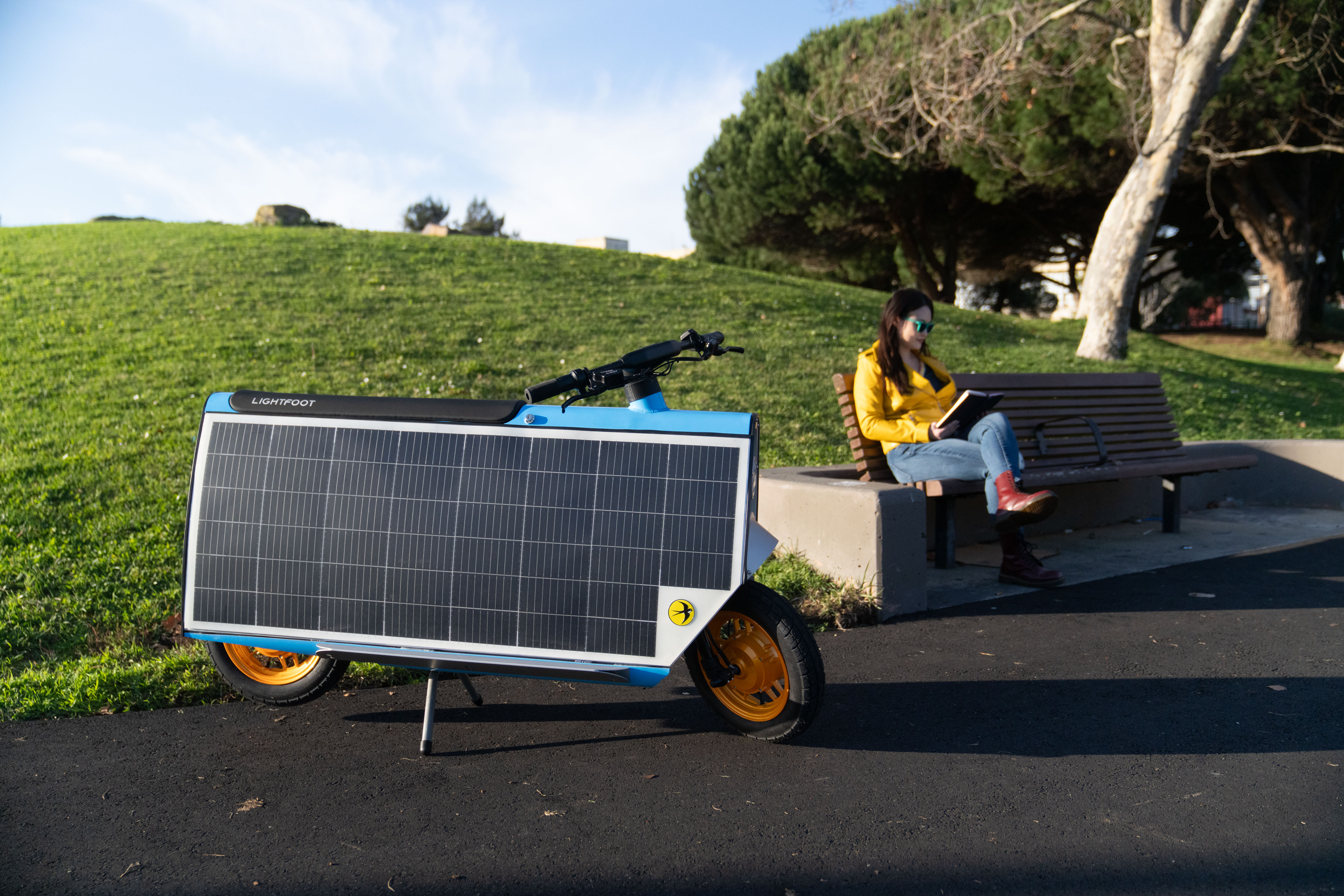

SOLAR

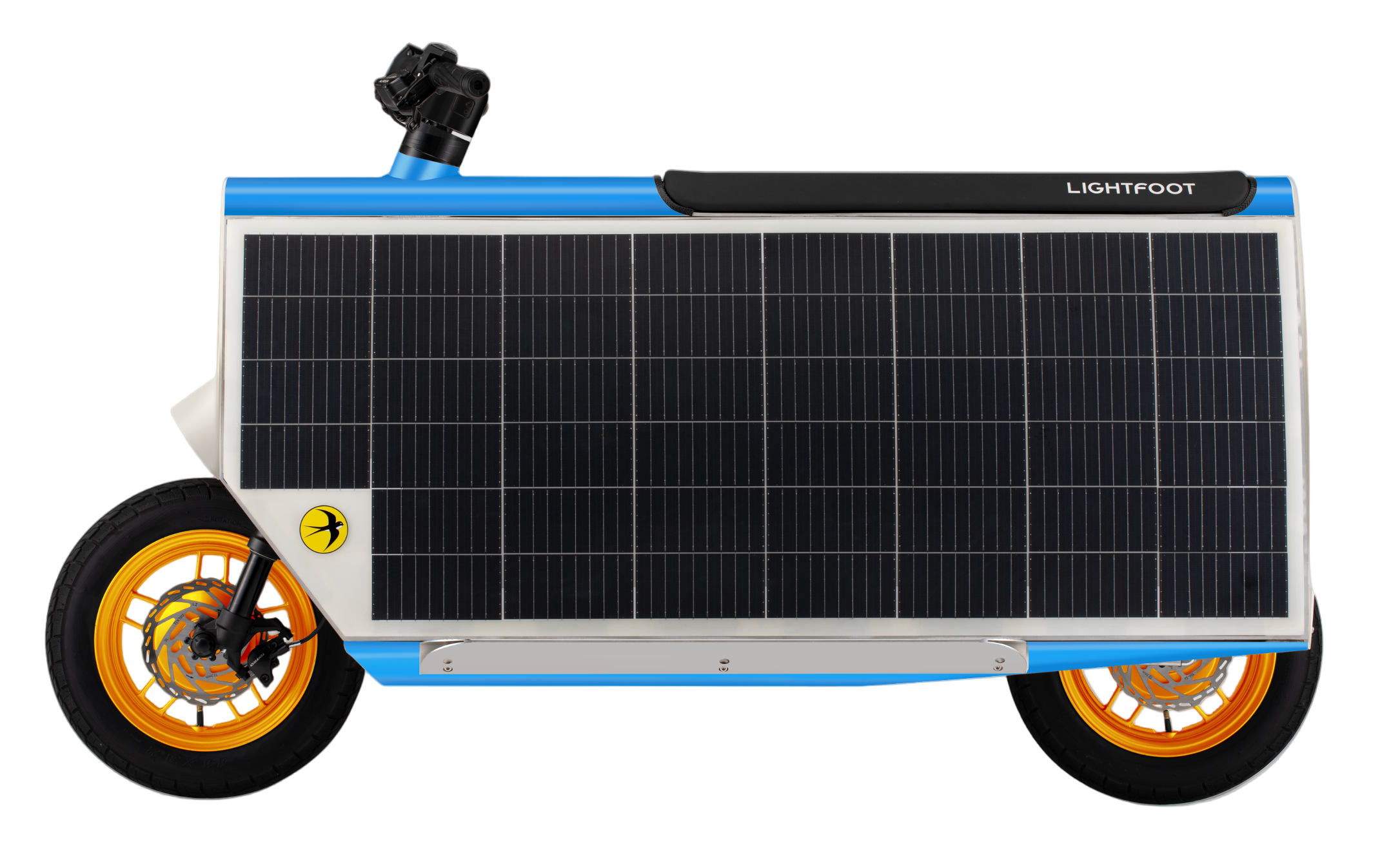

Dual 120W integrated solar panels with high-impact laminate cover with vacuum-formed, high-impact ABS-reinforced doors
SPEED
Top speed: 19.9 MPH (32 kp/h)
THROTTLE
Right-hand twist throttle (with 45 degrees of throw + spring return for fast acceleration)
TORQUE*
Peak torque is rated at 45Nm per wheel (90Nm total) at 50 - 300 RPM, enabling Lightfoot to handle steep hills with ease.
COMPONENTS
BRAKE SYSTEM
Tektro Auriga HD-E540 (2-piston hydraulic disc brakes) + geared regeneration function (see above); 250 kg loading rated per wheel
BRAKE PADS
Tektro Heavy Duty spec: 5.0mm thickness
BRAKE ROTORS
Tektro Heavy Duty spec: 160mm x 2.3mm thickness
FRAME
Hand TIG welded 6061-T6 aircraft-grade aluminum – Lightfoot-designed, manufactured in Taiwan
Molded rubber comfort grips
KICKSTAND
Heavy duty aluminum manual kickstand; alloy top with alloy leg (205mm/W330mm)
SADDLE

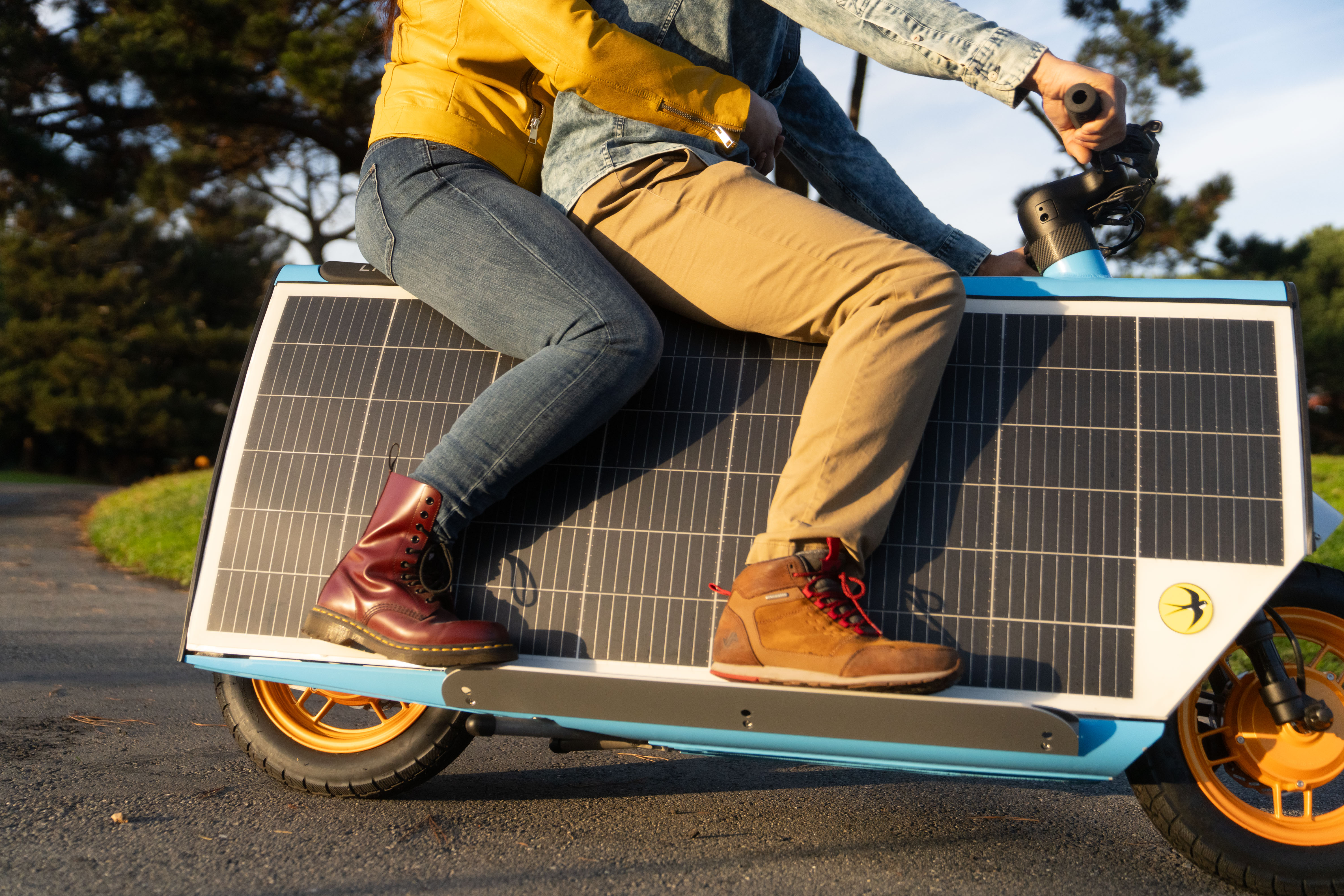

Lightfoot-designed saddle seats up to two riders: 29.5 in. long x 6.22 in. wide (750mm x158mm); waterproof cover with polyurethane foam cushioning.

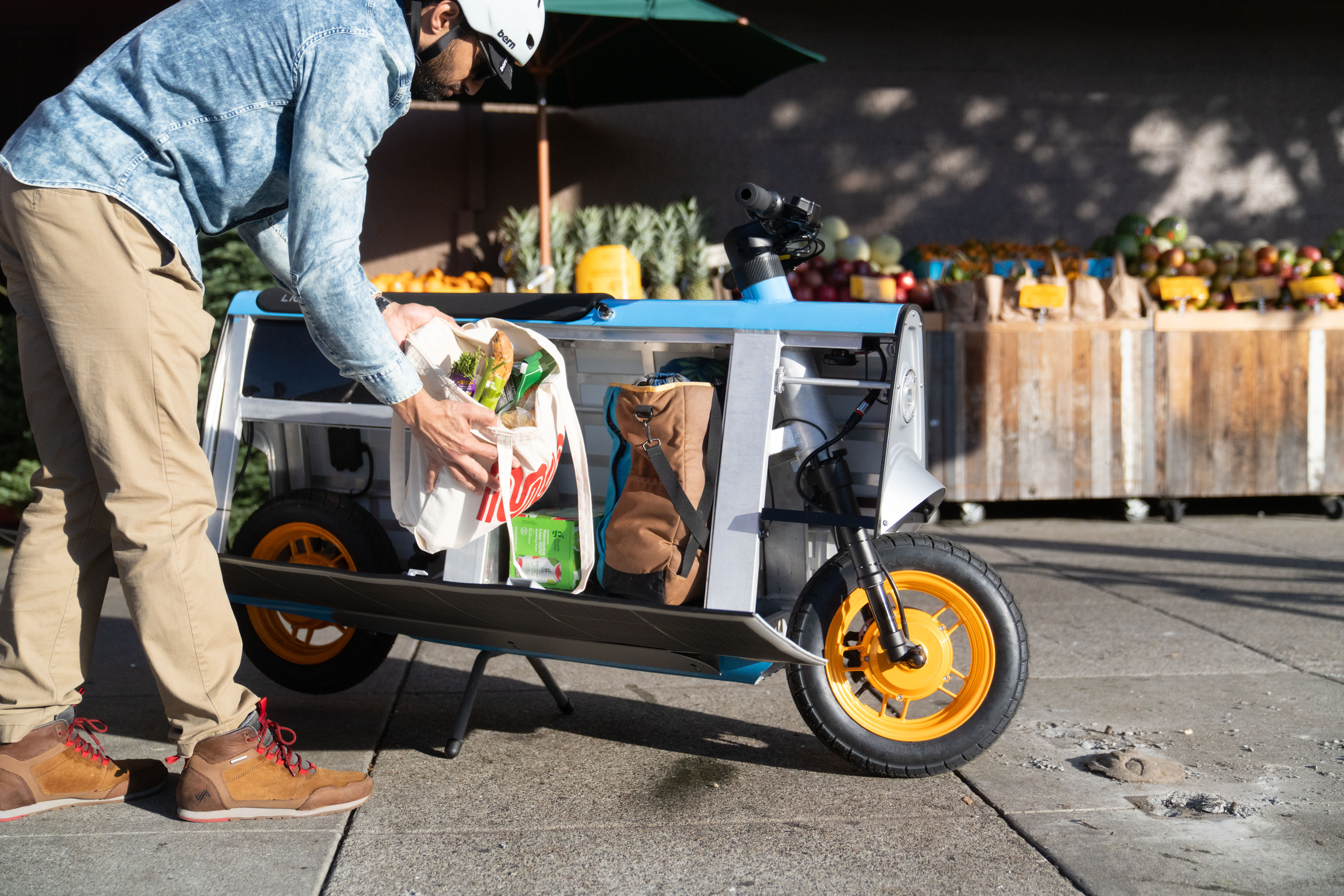

STORAGE
Lockable internal cargo bay with 1.597 cubic feet (45.2 liters) of storage (weatherproof and theft-proof) for up to 33 lbs. (15 kg) of
cargo
SUSPENSION (FRONT)
Lightfoot-exclusive design, motorcycle-grade: Oil damped, coil spring, inverted design with Lightfoot-designed forged crown and forged dropouts – 70mm of travel
SUSPENSION (REAR)
Motorcycle-grade: Coil over oil high-performance damper with rebound adjustment and spring preload adjustment – 50mm of travel, 550 lb. spring
WHEELS
Lightfoot-designed 10-inch die-cast aluminum wheels with heavy-duty 14*3.2 butyl rubber tires with tubes
GEOMETRY
RIDER HEIGHTS
5'2" - 6'2" (157.5cm - 188cm)
SCOOTER WEIGHT
137 lbs. / 62 kg
MAXIMUM GROSS WEIGHT
419 lbs. / 190 kg (Max. rider weight: 282 lbs/ 128 kg)
SEAT HEIGHT
35 in. / .8 meters
63 in. x 17.75 in. x 38.25 in. (1.6m x 0.5m x 1m)
WHEELBASE
50 in. / 1.27 meters
